What is 3LPE coating, and how does it protect pipes?

3LPE coating, or three-layer polyethene coating, is a protective layer applied to pipes to enhance their durability and resistance to corrosion. It consists of three layers: a fusion-bonded epoxy (FBE) base layer, an adhesive layer, and a polyethene outer layer. The FBE base layer provides excellent adhesion to the pipe surface, creating a strong bond. The adhesive layer ensures a seamless transition between the FBE and outer polyethene layers.

The polyethene outer layer is a barrier against moisture, chemicals, and mechanical damage, protecting the pipe from corrosion and extending its lifespan. This coating system provides a robust defence against environmental factors, such as soil conditions, chemicals, and abrasive substances, significantly reducing pipe deterioration and maintenance requirements risk. Additionally, the 3LPE coating offers good impact resistance and thermal insulation properties, making it suitable for various applications in industries like oil and gas, water distribution, and infrastructure development.

Table Of Content

3LPE Pipeline Coating, DIN 30670 Coating, 3 Layer Polyethylene Pipe Coating, 3LPE Coated Pipes, 3LPE LSAW Coating Pipes, 3 Layer PE Pipeline Coating, 3LPE Coated Seamless Pipe Supplier In Mumbai, India.

What are the advantages of using 3LPE-coated pipes compared to other coatings?

Using 3LPE-coated Pipes offers several advantages over other types of coatings. Firstly, the three-layer polyethene coating provides superior corrosion protection, minimizing the risk of pipe degradation and extending the service life of the pipes. That is particularly beneficial in environments where the pipes are exposed to aggressive substances, such as chemicals or moisture. The fusion-bonded epoxy (FBE) base layer ensures excellent adhesion to the pipe surface, creating a strong and durable bond. In contrast, the outer polyethene layer is a barrier against corrosion-causing elements.

Secondly, 3LPE-coated pipes are known for their robust mechanical properties. The coating offers high impact resistance, which helps protect the pipes from damage during transportation, handling, and installation. Additionally, the coating provides thermal insulation properties, reducing heat loss or gain in fluid transportation systems.

Specification Of 3LPE Coated Pipe

Standards and Specifications
  • DIN 30670
  • CSA Z245.21
  • ISO 21809-1
Type Seamless Steel Pipes and 3LPE Pipeline Coating
Coating type 3 Layer polyethylene
Size range 25 mm to 3000 mm
Lengths limit up to 12m
Wall Thickness SCH5S to SCH160, XXS
Connections weld and thread
Standards ANSI, JIS, DIN, EN, ISO.
Materials list
  • 3LPE Coated carbon steel pipes
  • 3LPE Coated stainless steel pipes
  • 3LPE Coated alloy steel pipes
  • 3LPE Coated Mild Steel pipes
Specialized in
  • 3 Layer Polyethylene Coated Steel Pipes
  • 3LPE Seamless API 5L Gr A / B Pipes
  • LSAW 3LPE Steel Pipe, API 5L,
  • APL 5CT 3 Layer Polyethylene Coated Pipes
  • SRL, DRL 3LPE Coated Pipes
3lpe pipe coating layers
  • Layer 1: fusion bonded epoxy Corrosion protective layer.
  • Layer 2: Copolymer adhesive
  • Layer 3: Applied for physical protection and consists of polyethylene
Mild Steel strength 125 kg/cm² (ASTM D 4541)
Life of 3LPE Coated Pipes 75 years+
Temperature limits -40°C to 80°C
Coating thickness 4.2 mm max

CS 3LPE Pipeline Coating Pressure Rating Chart, 3LPE Carbon Steel Coated Piping Near Me, 3LPE External Coating Dimensions, 3 Layer Polyethylene Internal Coating Pipes Price List, Carbon Steel 3LPE Pipeline Price List, FBE Internal Coating Size Chart In MM, FBE Coating Pipe Price Per Kg, 3LPE Coated Pipes Stockist In Mumbai.

Types Of Carbon Steel 3 LPE Coated Pipes

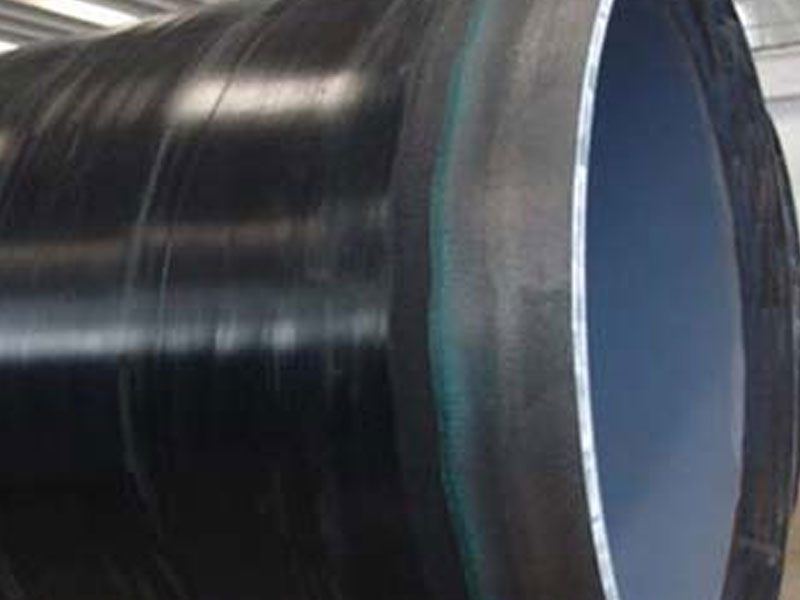

Carbon Steel PE Coated Pipe

Carbon Steel PE Coated Pipe

CS PE Coated Pipe, Carbon Steel PE Coated Pipe Supplier, CS PE Coated Pipe Stockist.

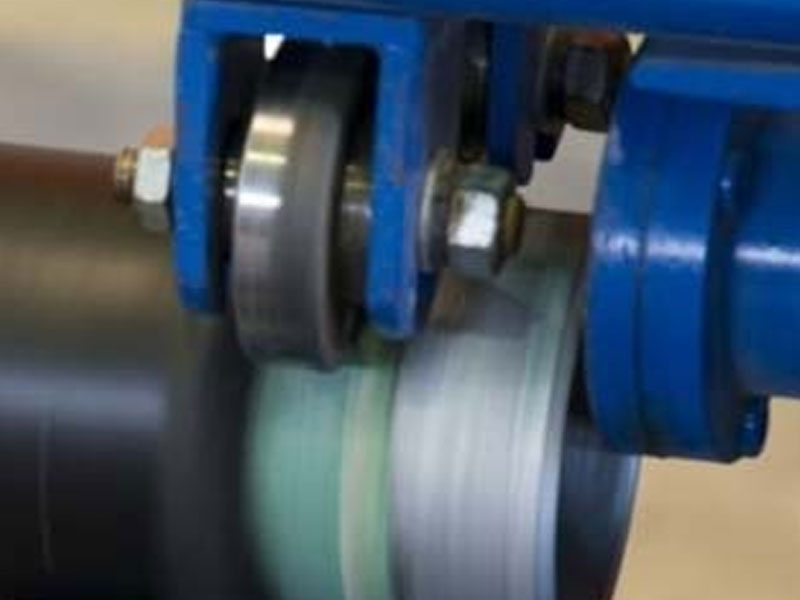

Carbon Steel 3LPE External Coating Pipe

Carbon Steel 3LPE External Coating Pipe

CS 3LPE External Coating Pipe, Carbon Steel 3LPE External Coating Pipe Supplier, CS 3LPE External Coating Pipe Stockist.

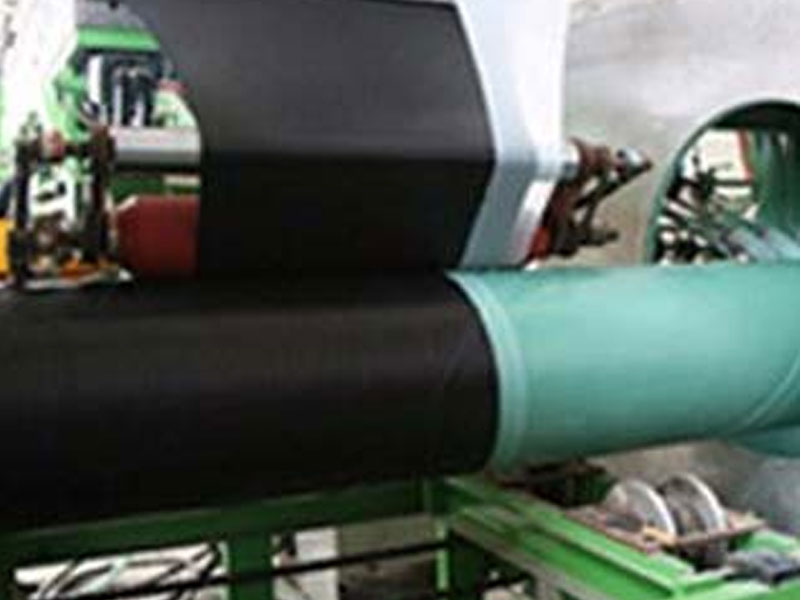

Carbon Steel 3LPE Coated Pipes

Carbon Steel 3LPE Coated Pipes

CS 3LPE Coated Pipes, Carbon Steel 3LPE Coated Pipes Supplier, CS 3LPE Coated Pipes Stockist.

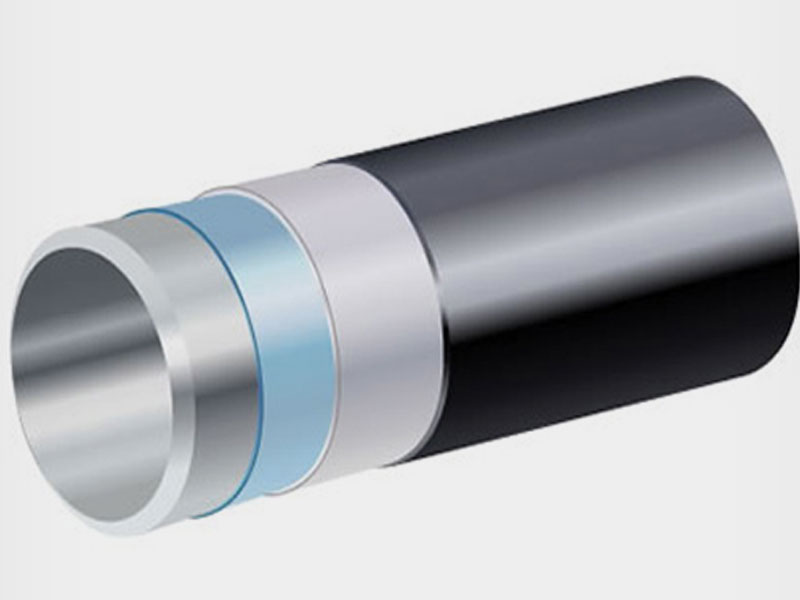

Carbon Steel FBE Internal Coating

Carbon Steel FBE Internal Coating

CS FBE Internal Coating, Carbon Steel FBE Internal Coating Supplier, CS FBE Internal Coating Stockist.

Widest Range of Carbon Steel 3LPE Coated Pipes in Mumbai, India.

  • Widest Range3 Layer Polyethylene Coated Steel Pipes
  • Widest Range3LPE Seamless API 5L Gr A Pipe
  • Widest Range3LPE Seamless API 5L Grade B Pipe
  • Widest RangeLSAW 3LPE Steel Pipes
  • Widest RangeAPL 5CT 3 Layer Polyethylene Coated Pipes
  • Widest RangeDRL 3LPE Coated Pipes
  • Widest RangeSRL 3LPE Coated Pipes
  • Widest RangeCarbon Steel 3LPE Pipes
  • Widest RangeCS 3LPE Pipeline
  • Widest RangeCarbon Steel FBE Internal Coating
  • Widest RangeFbe Coating Pipes
  • Widest Range3LPE Pipeline Coating

Check Other Pipes Types In Detail

PE Coated API 5L Grade B Pipeline Pressure Rating, ASTM A106 Grade B 3LPE Pipe, 3LPE ASTM A53 Gr. B Pipes Dimensions, A333 Grade 6 3LPE Pipe Sizes, 3LPE Mild Steel Pipe Exporter In India

Carbon Steel 3LPE Coated Pipes Price

Product Price
3LPE Coating Steel Pipes Price $2,548.00 - $3,445.00/ Ton
3LPE Coated Pipe Price List $698 - 848/ Ton
A333 Gr 6 3LPE Pipes Price US $ 1887 - 46878 / Ton
Carbon Steel 3LPE Coating Pipe Price Per KG $1878.00 - $3885.00/ Ton
CS PE Coated API 5L Grade B Pipeline Price List US $ 45 - 90 / kg
ASTM A106 Grade B 3LPE Pipe Price List $278.00 - $1,457.00/ Ton
CS 3LPE API 5L Pipe Price $887.00 - $1,787.00/ Ton
3LPE Alloy Steel Pipe Price US $ 2698 - 4456 / Ton
3LPE API 5L Grade B Pipe Price US $ 1924 - 4554 / Ton

For Quotation & Questions Related To 3LPE Coated Pipes

Avoid those problems that occur with low-quality 3lpe coated carbon steel pipe by getting 3lpe coated carbon steel pipes at competitive prices from us. Give us a call or send us an email to discuss how we can help you build your business. Working with such an esteemed client as you will make us happy.

Feel Free To Call Us

+91-22 66581538 / 67436694 / 66159079 / 66109768

Or Drop Us An E-Mail

info@metallicametals.com

CONTACT US

Carbon Steel 3LPE External Coating Pipe Manufacturing Process

Rolling and welding

Firstly, the carbon steel strips are made to gone through various quality checks and are trimmed at edges. They are then fed to the tubes mill by carbon steel pipe manufacturers in India. The strips pass through the number of rollers as per the required size. In the tubes-mill, the strip is gradually converted into the tubular shape. The fitted welding machine is then used to weld trim edges of the strip using TIG welding process. The scraps and inside weld bead are removed instantaneously by the Tibo machine. In this way, rolled pipes and tubes are formed.

The cleaning and heating phase

The rolled High Pressure Seamless Pipes thus manufactured are cut to the required lengths depending upon the industrial demand. These stainless pipes and tubes are then subjected to cleaning to remove the dirt. Further, a heat treatment is given to these rolled pipes and tubes to remove the stresses that may occur due to welding and formation processes. Heat treatment is given on the continuously rolling hearth furnace. The furnace is fitted with temperature recorders and controllers. After the heat treatment process, the SS tubes and pipes are straightened and subjected to pickling for removing scales from the surface.

Cold- drawing process

In some cases, the required size may not be obtained from the mill directly. Then, the cold operation process can be used to obtain the desired size. In cold drawing process, the tubes or pipes are coated with oxalic and soap solution. This solution acts as a lubricant to reduce friction while cold drawing operation. In the cold drawing process, the tube or pipe is drawn over the bench using Die plugs.

Finishing process

The drawn-out tube or alloy pipe is then subjected to cleaning, heat treatment, pickling and straightening. The computerized ink jet marking machine is used to do the marking on the finished pipes or tubes. The pipe or tube is marked with grade of material, size, heat number and the stamp of third party inspection before passing on to carbon steel pipe exporters. The stainless tubes or pipes thus produced will undergo certain testing and quality checks. This process is followed by proper packing and dispatch. There are numerous numbers of carbon steel pipe applications, these pipes and tubes are used thereafter for.

3 Layer Polyethylene Pipe Coating Suppliers, 3LPE Coated Piping Stockist, 3 Layer Polyethylene Coating Pipeline Stockist, DIN 30670 Coated Steel Pipe, ASTM A672 SMLS Pipe Exporter.

3LPE Coated SCH 40 CS Seamless Line Pipes Supplier In Mumbai, 3LPE Coated ERW Pipes, DIN 30670 Polyethylene Coatings For Steel Pipes Supplier In India, 3LPE LSAW Coating Pipes Stockist In Mumbai, Three Layer Polyethylene Coated Pipe Stockist In India.

Testing & Inspection of 3LPE Coated Pipes

Testing (Destructive, Non Destructive)

Positive Material Identification – PMI Testing Hydrostatic Test
Chemical Analysis – Spectro Analysis Hydrogen-Induced Cracking (HIC) Test
Mechanical Testing Such as Tensile, Elongation, Reduction of Area Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
Micro Test Radiography Test
Macro Test Dye Penetrant Test (DP Test)
Hardness Test Ultra Sonic Test (UT)
Pitting Resistance Test Eddy Current Testing
Intergranular Corrosion (IGC) Test Impact Test
Flaring Test Bend Test
Flattening Test

CS ASTM A53 Pipe Grade B Sizes in MM

Designation of Diameter O/D Nominal Wall Thickness
DIA SCH.5S SCH.5 SCH 10S SCH.10 SCH.20S SCH.30 SCH.40S SCH.40 SCH 60
(A) (B) Meter MM Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr Wall Thk Weight Kg/Mtr
6 1/8 10.3 1 0.23 1.2 0.27 1.5 0.33 1.73 0.37
8 1/4 13.7 1.2 0.37 1.65 0.49 2 0.58 2.24 0.64
10 3/8 17.2 1.2 0.47 1.65 0.63 2 0.74 2.31 0.87
15 1/2 21.3 1.65 0.01 1.65 0.81 2.11 1.02 2.11 1.02 2.5 1.15 2.77 1.29
20 3/4 26.7 1.65 1.03 1.65 1.03 2.11 1.3 2.11 1.3 2.5 1.49 2.87 1.71
25 1 33.4 1.65 1.31 1.65 1.31 2.77 2.13 2.77 2.13 3 2.24 3.38 2.54
32 11/4 24.2 1.65 1.67 1.65 1.67 2.77 2.73 2.77 2.73 3 2.9 3.56 3.44
40 11/2 48.3 1.65 1.93 1.65 1.93 2.77 3.16 2.77 3.16 3 3.35 3.68 4.11
50 2 60.3 1.65 1.93 1.65 2.42 2.77 3.99 2.77 3.99 3.5 4.9 3.91 5.52
65 21/2 73 2.11 3.75 2.11 3.75 3.05 5.34 3.05 5.34 3.5 6 5.16 8.77
80 3 88.9 2.11 4.59 2.11 4.59 3.05 6.56 3.05 6.56 4 8.37 5.49 11.47
90 31/2 101.6 2.11 5.25 2.11 5.25 3.05 7.53 3.05 7.53 4 9.62 5.74 13.78
100 4 114.3 2.11 5.93 2.11 5.93 3.05 8.5 3.05 8.5 4.5 12.18 6.02 6.32
125 5 141.3 2.77 9.61 2.77 9.61 3.4 11.74 3.43 11.74 5 16.8 6.55 2210
150 6 168.3 2.77 11.47 2.77 11.47 3.4 14.04 3.43 14.04 5.5 22.08 7.11 28.69
200 8 219.1 2.77 15 2.77 15 3.76 20.77 3.76 20.27 6.35 33.82 7.04 37.38 8.18 43.2 10.81 53.9
250 10 273.1 3.4 22.95 3.4 22.95 4.19 28.2 4.19 28.2 6.35 42.41 7.8 51.81 9.27 61.22 12.2 82.8
300 12 323.9 3.96 31.72 4.19 33.6 4.57 36.54 4.57 36.54 6.35 50.48 8.38 66.2 9.53 75.01 10.31 80.94 14.27 110.62
350 14 355.6 3.96 34.86 4.78 41.99 6.35 55.53 7.92 68.95 9.53 82.58 9.53 82.58 11.13 96 15.06 128.42
400 16 406.4 4.19 42.2 4.78 48.07 6.35 63.61 7.92 79.03 9.53 94.7 9.53 94.7 12.7 125.2 16.66 162.59
450 18 457.2 4.19 47.46 4.78 54.15 6.35 71.69 7.92 89.1 11.13 124.32 9.53 106.83 14.27 158.27 19.05 209
500 2C 508 4.78 60.23 5.54 69.7 6.35 79.76 9.53 118.93 12.7 157.51 9.53 118.9 15.06 185.89 2062 251.65
550 22 558.8 4.78 65.95 5.54 76.75 6.35 87.84 9.53 131.07 12.7 173.66 9.53 131.07 15.88 216.04 22.23 298.55
600 24 609.6 5.54 83.8 6.35 95.92 6.35 95.92 9.53 143.2 14.27 212.72 9.53 143.2 17.45 258.74 24.59 360.21
650 26 660.4 7.92 129.4 12.7 205.97 9.53 155.32
700 28 711.2 7.92 139.47 12.7 222.13 15.88 276.48 9.53 167.44
750 3C 762 6.35 120.15 7.92 149.55 7.92 149.55 12.7 238.28 15.88 296.68 9.53 179.56
800 32 812.8 7.92 159.62 12.7 254.44 15.88 316.88 9.53 191.69 17.48 348.11
850 34 863.6 7.92 169.64 12.7 270.5 15.88 336.96 9.53 203.74 17.48 370.22
900 36 914.4 7.92 179.77 12.7 286.75 15.88 357.28 9.53 215.93 19.05 427.09
