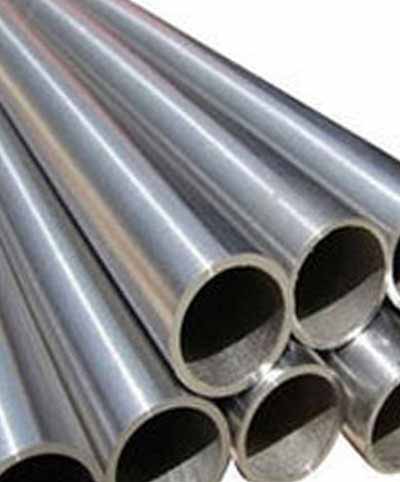

Stainless Steel Ornamental Tubing
SS Ornamental Tubes, Ornamental SS Tubing Supplier, Stainless Steel Ornamental Tubing Stockist.
What is stainless steel ornamental tube, and what are its applications?
Stainless Steel Ornamental Tube refers to a specially designed type of tubing made from stainless steel, a corrosion-resistant alloy composed primarily of iron, chromium, and varying amounts of other elements. This type of tube is meticulously crafted and finished to possess both functional and aesthetic qualities, making it highly suitable for various applications in decorative and architectural contexts.
The Ornamental Tube is often used to enhance the visual appeal and durability of structures such as handrails, balustrades, staircases, furniture, and exterior facades. Its sleek and polished appearance, coupled with stainless steel's inherent strength and corrosion resistance, makes it an ideal choice for indoor and outdoor installations. Moreover, the versatility of stainless steel ornamental tubes allows for diverse designs and configurations, enabling architects, designers, and homeowners to create stunning and enduring ornamental features in various settings.
Table Of Content
What are the key properties of stainless steel ornamental tubes that make them suitable for various decorative and architectural purposes?
Stainless steel ornamental tubes possess several key properties that contribute to their suitability for various decorative and architectural purposes. Stainless steel is renowned for its exceptional corrosion resistance, ensuring that the ornamental tubes maintain their visual appeal and structural integrity even in harsh environments. This corrosion resistance helps prevent discolouration, rust, and degradation over time, making stainless steel ornamental tubes highly durable and low-maintenance.
The inherent strength of stainless steel ensures that the tubes can withstand heavy loads and provide structural stability, offering reliable support for applications such as handrails and balustrades. This strength is particularly important in architectural settings where safety and longevity are paramount.
Furthermore, Stainless Steel Ornamental Tubes can be manufactured in various grades and finishes, allowing for a wide range of aesthetic options. From brushed or polished surfaces to different colours and patterns, these tubes can be customized to meet the specific design requirements of different projects, offering flexibility and versatility in architectural and decorative applications.
Standards | A554 - A778 - A789 - A790 |
range |
Rounds - 1/2" OD - 6" OD Wall Thickness - .035 - .120 |
size range |
Squares - 1/2" OD - 8" OD Wall Thickness - .065 - .250 |
range |
Rectangles - 1/2" x 1" to 12" Wall Thickness - .065 - .250 |
Grades | TP - 304,304L,316,316L,201 |
Finish | Polished Grit 120 - 600, Seamless, Welded, Brushed, Pickled, Solution Annealed and Pickled up to O.D. 219.1mm,Mirror Polished |
SS Ornamental Tubes, Ornamental SS Tubing Supplier, Stainless Steel Ornamental Tubing Stockist.

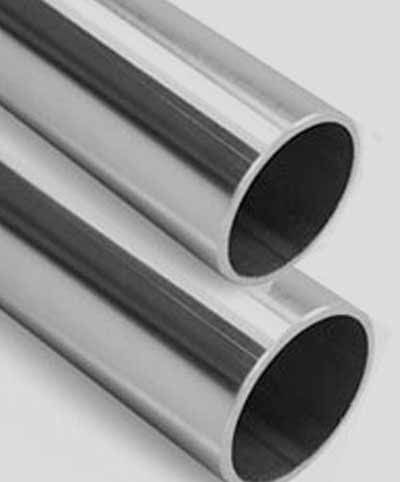

SS 304L Ornamental Steel Tubes, Ornamental SS 304L Tube Supplier, Stainless Steel 304L Ornamental Tubing Stockist.

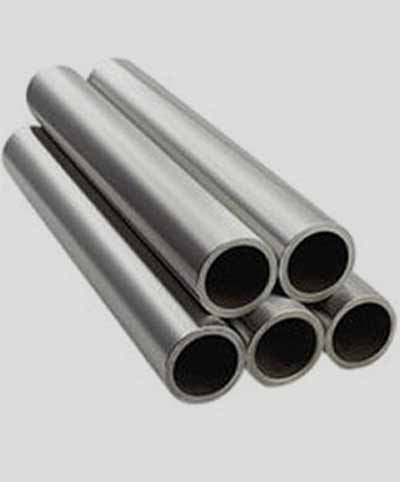

SS 316 Ornamental Tubes, Ornamental SS 316 Ornamental Tube Supplier, Stainless Steel 316 Ornamental Tubing Stockist.

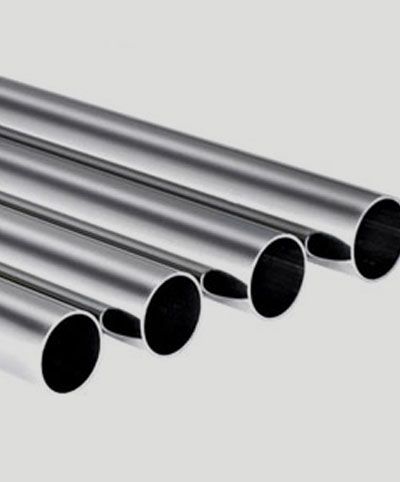

SS 201 Ornamental Tubes, Ornamental SS 201 Tube Supplier, Stainless Steel 201 Ornamental Tubing Stockist.
Grades | WERKSTOFF Nr | UNS NO |
304 | 1.4301 | S30400 |
304L | 1.4306 | S30403 |
316 | 1.4436 | S31600 |
316L | 1.4404 | S31603 |
Product | Price |
316L Stainless Steel Ornamental Tube Price List | US $ 25 - 25 / Pound |
Ornamental 316 Stainless Steel Tube Price | US $ 2541 - 18873 / Ton |
25mm Ornamental SS Tube Price | US $ 1422 - 3655 / Ton |
22mm Ornamental Stainless Steel Tube Price Per Kg | $6 - 34 / Kg |
316 SS Electro Ornamental Tubing Price | US $ 1846 - 2585 / Ton |
SS 304L Ornamental Tube Price In India | $658.00 - $1,165.00/ Ton |
12 inch stainless steel Ornamental Tubing Price List | $732.00 - $1,945.00/ Ton |
Welded SS Ornamental Tubing Price Per Piece | $7.00 - $658.00/ Piece |
Hot Rolled Ornamental Ss Tubing Price | $5,455.00 - $4,538.00/ Ton |
Avoid those problems that occur with low-quality stainless steel ornamental tubes by getting high-quality stainless steel ornamental tubes at competitive prices from us. Give us a call or send us an email to discuss how we can help you build your business. Working with such an esteemed client as you will make us happy.
Feel Free To Call Us
Mobile No.
Or Drop Us An E-Mail
Welding Process
The grade and application requirements have an impact on tube welding and forming. For the manufacturing of tiny diameter tubes, we employ TIG welding. Steel sheets are coiled and welded inside of a welding machine. The steel sheets are shaped into a coil before entering the machine. The seam between these coils is then welded to create a tube.
Drawing/ Floating Process
Pulling a metal bar, rod, or wire through the entirety of a die to change its finish, shape, size, and/or mechanical qualities is known as floating or drawing. The tube's outer, inner, and wall thicknesses are all reduced via the tube drawing procedure. Stainless steel tubes benefit from maintaining the integrity of their surface.
Continuous Seamless Tube Mills
The production of seamless tubes has been transformed by continuous tube mills. These mills do away with the necessity for forging welding or filler metal, in contrast to conventional procedures. With the use of this technology, seamless pipes and tubes may be produced continuously, increasing productivity while lowering costs and improving efficiency.
Continuous Casting
A notable advancement in the production of seamless tubes is continuous casting. The metal is solidified into a continuous billet through the continuous pouring of molten metal into a water-cooled mould. Better uniformity and enhanced mechanical qualities are guaranteed by this continuous casting technique for the tubes.
Annealing
Metal is heated above the point of re-crystallization and cooled to room temperature during the annealing process. The molecular bonds in metal tighten when it is shaped, making it rigid. The metal is put through an annealing process to regain its ductility.
Sinking Process
Tube sinking is a drawing technique that reduces the diameter of tubes. In this drawing technique, a tube is run through a die without the need of a mandrel. Good inner surface quality is not ensured when using a mandrel. The die angel determines the integrity of the outer surface. The die being used produces a uniform surface. A tube can be significantly smaller than it was originally. When cost is a factor, tube sinking is ideal.
Inspection and Testing
Before sending our items to our consumers, we conduct inspection procedures to verify their integrity.
GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo |
TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | |
TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | |
TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 |
TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
º F(º C) | |||||
TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
Positive Material Identification – PMI Testing | Hydrostatic Test |
Chemical Analysis – Spectro Analysis | Hydrogen-Induced Cracking (HIC) Test |
Mechanical Testing Such as Tensile, Elongation, Reduction of Area | Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177 |
Micro Test | Radiography Test |
Macro Test | Dye Penetrant Test (DP Test) |
Hardness Test | Ultra Sonic Test (UT) |
Pitting Resistance Test | Eddy Current Testing |
Intergranular Corrosion (IGC) Test | Impact Test |
Flaring Test | Bend Test |
Flattening Test |
BWG | BWG | BWG | BWG | BWG | BWG | BWG | BWG | ||
25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||
WT mm | WT mm | WT mm | WT mm |
WT mm | WT mm | WT mm | WT mm |
||
Outside Diameter | Outside Diameter | 0.508 | 0.711 | 0.889 | 1.245 | 1.651 | 2.108 | 2.769 | 3.404 |
mm | inch | kgs/m | kgs/m | kgs/m | kgs/m | kgs/m | kgs/m | kgs/m | |
6.35 | 1/4 | 0.081 | 0.109 | 0.133 | 0.174 | 0.212 | |||
9.53 | 3/8 | 0.126 | 0.157 | 0.193 | 0.257 | 0.356 | 0.429 | ||
12.7 | 1/2 | 0.214 | 0.263 | 0.356 | 0.457 | 0.612 | 0.754 | ||
15.88 | 5/8 | 0.271 | 0.334 | 0.455 | 0.588 | 0.796 | 0.995 | ||
19.05 | 3/4 | 0.327 | 0.405 | 0.553 | 0.729 | 0.895 | 1.236 | ||
25.4 | 1 | 0.44 | 0.546 | 0.75 | 0.981 | 1.234 | 1.574 | 2.05 | |
31.75 | 1 1/4 | 0.554 | 0.688 | 0.947 | 1.244 | 1.574 | 2.014 | 2.641 | |
38.1 | 1 1/2 | 0.667 | 0.832 | 1.144 | 1.514 | 1.904 | 2.454 | 3.233 | |
44.5 | 1 3/4 | 1.342 | 1.774 | 2.244 | 2.894 | 3.5 | |||
50.8 | 2 | 1.549 | 2.034 | 2.574 | 3.334 | 4.03 | |||
63.5 | 2 1/2 | 1.949 | 2.554 | 3.244 | 4.214 | 5.13 | |||
76.2 | 3 | 2.345 | 3.084 | 3.914 | 5.094 | 6.19 | |||
88.9 | 3 1/2 | 2.729 | 3.609 | 4.584 | 5.974 | 7.27 | |||
101.6 | 4 | 4.134 | 5.254 | 6.854 | 8.35 | ||||
114.3 | 4 1/2 | 4.654 | 5.924 | 7.734 | 9.43 |
